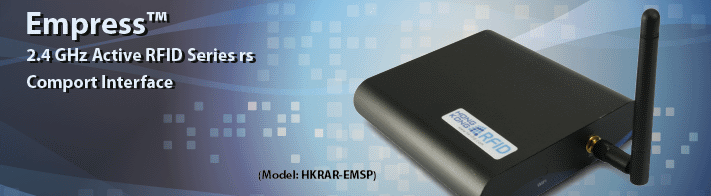

♦     EMPRESS™ Active Reader (P/N: HKRAR-EMSP) has comport interface and therefore is more stable performance. Through RS232 connection, the reader gathers and transmits data to the PC. Once powered, the HKRAR-EM series is instantly connected and become part of the network.

♦     EMPRESS™is user friendly with a cross-platform. You can get data and do analysis with different operation system in an efficient way.

♦     2.4GHz Active RFID Reader uses the advanced 0.18um CMOS IC, and is well-fitted for being a Data Collector.

♦     The Omni-directional antenna of EMPRESSTM can identify tags from all directions. Users can adjust the identification distance according to actual situation in order to make identification more accurate.

♦       Comport Interface (RS232)

♦       Sensitive to Active RFID tag

♦       Long Range Identification

♦       Suitable for wide range of applications

♦       Cross-platform

  Direction

Omni-directional, standard rubber antenna



Range

30-50m indoor environment, 50-70m with line of sight



Frequency

2.4GHz--2.5GHz ISM



RF Output Power

0dBm



Sensitivity

-85dBm



Power

500mA,5V, Power adapter



Modulation

GFSK



Software Interface

Comport Communication Protocol



Data Rate

1Mbps



Operating Temperature

-40~60 ºC



Operating Humidity

95%(Non-condensing)



Anti-collision

>100 tags in first read
>200 tags shown within 3 sec



Interface

RS232



Dimension

125mm * 108mm * 26mm

*Remarks: Reading range is subjected to RF environment and RF power of tag, 100m is achieved in open space using HKRAT-NT02 active tags which are placed 1m above ground.

Product Certificate: FCC & CE

COMING SOON......
