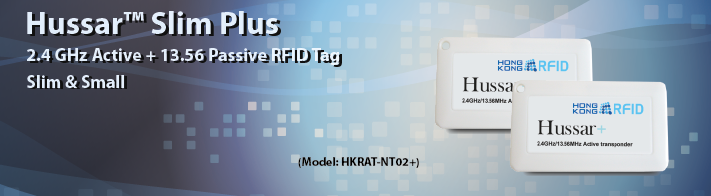

♦     The Hussar™ Active Tag provides excellent reading range and reliability for high value applications such as people or asset tracking, inventory management, customer relationship management and so on.

♦     It is small in size, and is easy to carry around with its key fob design. It has great RFID performance but of low cost. This makes Hussar™ the best choice for People Tracking and Location System.

♦     HKRAT-NT02+ is an upgraded model which add on Passive RFID tag. It brings higher flexibility and suitable for wide applications. It can satisfy both short & long reading distance and store security value. Applications such as access control, payment applications, and CRM would be highly recommended.

♦     There is no interference between two different RFID systems. NT02+ can work as a proximity card with the Passive tag while it maintains the special features of 2.4GHz Active RFID.

♦     With its small size, stable and impressive performance along with our active readers, Hussar™ tags would make an excellent and extendable management system.

♦       Stylish outlook

♦       Compact size, with keychain design

♦       No interfere with other 2.4GHz network

♦       Extra low power consumption

♦       Battery replaceable

♦       Duel Frequency (Active + Passive)

♦       Satisfy both short and long reading range



2.4GHz ~2.5GHz ISM & 13.56MHz


RF Power Output

0dBm (1mW)



16~18μA, 3V





Data Rate




Read more than 100 tags simultaneously



Read only


Battery Type

Lithium CR2325 replaceable coin cell


Battery Life

Around 1 year (battery life measured at 1-second motion beacon interval)


Reading Range

30 to 50 meters (Depend on Reader Antenna)



52mm x 30mm x 4.5mm

Product Certificate: FCC & CE
